NON-ASBESTOS

Compressed Non-Asbestos Gaskets

Commercial Gasket & Packing is a leading manufacturer of high quality compressed non-asbestos gaskets and seals. Compressed non-asbestos gasket materials combine non-asbestos fibers such as fiberglass and aramid fibers with rubber to enhance the temperature and pressure performance of the gasket. Combining inorganic and organic fibers with rubber and fiberglass allows for a range of variants that have different mechanical specifications. These compressed non-asbestos gaskets provide excellent ability to seal, torque retention, and heat resistance that eliminates the need for asbestos. Gaskets manufactured from compressed non-asbestos materials are designed to perform in applications involving, air, water, steam, oils, acids and general chemicals. Commercial Gasket & Packing takes pride in its ability to consistently produce high quality; die cut compressed non-asbestos gaskets manufactured specifically for your application.

Commercial Gasket & Packing produces custom die cut gaskets and water jet cut gaskets using Garlock®, Thermoseal® (Klinger®), Frenzelit®, Durlon®, Teadit® brands of compressed non-asbestos materials for all applications. These materials are generally available in thicknesses ranging from 1/64″ to 1/4″ thick. Pressure sensitive adhesive (PSA) backing can be added to most compressed non-asbestos gaskets we manufacture to aid in our customers applications.

TEADIT® Gaskets

Commercial Gasket & Packing produces die cut gaskets and water jet cut gaskets in a variety of TEADIT® compressed non-asbestos materials, including (but not limited to); NA1001, NA1076, NA1080, NA1081, NA1085, NA1090, NA1092, NA1100 and NA1000M.

NA1001 (green): is a compressed non-asbestos gasket material produced from a combination of synthetic fibers and bonded with nitrile rubber (NBR). It is a very good general service gasket material that has numerous applications in the process and wastewater industry. It is also commonly used in equipment such as pumps and valves. It is rated for temperatures up to 750°F.

NA1076 (multiple colors): is a compressed non-asbestos gasket material produced from a combination of aramid and other synthetic fibers and bonded with neoprene rubber (CR). It is a good all purpose sheet that is formulated to handle a broad range of refrigerants. It is suitable for services handling water, saturated steam, oils, fuels, mild acids and alkalis. It is rated for temperatures up to 700°F.

NA1080 (white/off-white): is a compressed non-asbestos gasket material produced from a combination of Aramid Fiber, inorganic fillers and bonded with styrene-butadiene rubber (SBR). It has numerous applications in the process industries handling media such as; mild acids and alkalis, water, brine, saturated steam, air, industrial gases, general chemicals, neutral solutions. It is rated for temperatures up to 716°F.

NA1081 (blue) is a compressed non-asbestos gasket material produced from a combination of DuPont Kevlar®, inorganic fillers and bonded with nitrile rubber (NBR). It has numerous applications in the process industries handling media like: mild acids and alkalis, water, hydrocarbons, oils, gasoline, steam, air, industrial gases, general chemicals, neutral solutions. It is rated for temperatures up to 752°F.

NA1085 (purple) is a compressed non-asbestos gasket material produced from aramid fibers and bonded with hypalon® rubber. It is specifically formulated to provide an effective seal against most acids in the process industries. It is rated for temperatures up to 464°F.

NA1090 (multiple colors): is a compressed non-asbestos gasket material produced from inorganic fibers, reinforced filler and bonded with nitrile rubber (NBR). It is a general purpose material suitable for services in the following general media categories: mild organic and inorganic acids, diluted alkalis, water, brine, steam, industrial gases, animal, synthetic and vegetable oils, petroleum & derivatives, general chemicals, neutral solutions and air. It is rated for temperatures up to 750°F.

NA1092 (grey) is a compressed non-asbestos gasket material produced from aramid fiber, graphite, reinforced fillers and bonded with nitrile rubber (NBR). It is a general purpose material suitable for services in the following general media categories: mild organic and inorganic acids, diluted alkalis, water, brine, steam, industrial gases, animal, synthetic & vegetable oils, petroleum & derivatives, general chemicals, neutral solutions and air. It is rated for temperatures up to 750°F.

NA1100 (black) is a compressed non-asbestos gasket material produced from inorganic fibers reinforced filler and bonded with nitrile rubber (NBR). It is a general purpose material suitable for services in the following general media categories: mild organic and inorganic acids, diluted alkalis, water, brine, steam, industrial gases, animal, synthetic & vegetable oils, petroleum & derivatives, general chemicals, neutral solutions, air, refrigerants and aliphatic solvents. It is rated for temperatures up to 750°F.

NA1000M (black) is a compressed non-asbestos gasket material produced from aramid fibers reinforced with a woven wire mesh and bonded with nitrile rubber (NBR). It is a general purpose material suitable for services in the following general media categories: mild organic and inorganic acids, water, brine, industrial gases, animal, synthetic & vegetable oils, petroleum & derivatives, air, and aliphatic solvents. It is rated for temperatures up to 720°F.

Garlock Blue-Gard® Gaskets

Commercial Gasket & Packing produces die cut gaskets in a variety of Garlock Blue-Gard® compressed non-asbestos materials, including (but not limited to); Blue-Gard® 3000, Blue-Gard® 3200/3400 and Blue-Gard® 3300, Blue-Gard® 3700.

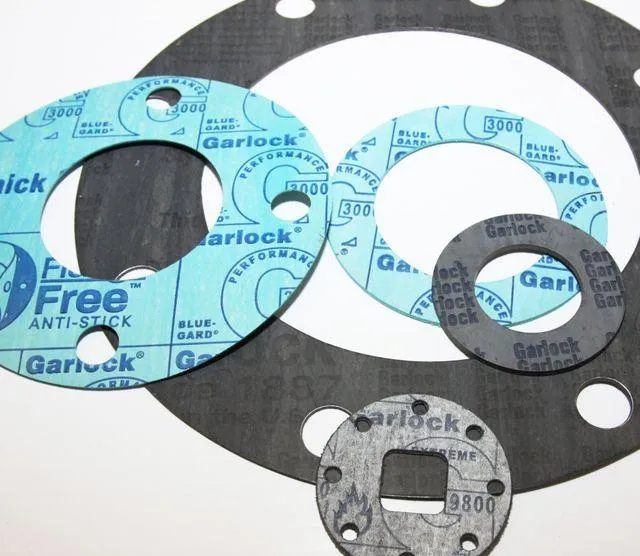

Blue-Gard® 3000 (Blue): is a unique blend of aramid fibers with a nitrile binder. It has excellent ability to seal which creates less waste and lower energy consumption. It is used in general industry including: water and wastewater treatment; oil and gas production; food processing, pipe flange gaskets and boiler gaskets. It is rated for temperatures up to 700°F.

Blue-Gard® 3200/3400 (Off White/Black): is a unique blend of aramid fibers with an SBR (Styrene Butadiene Rubber) binder. It possesses excellent sealing characteristics with good torque retention. It is a cost-saving material with low emissions. It is used in general industry including: power generation (steam); water and water treatment, and gas production & delivery. It is rated for temperatures up to 700°F.

Blue-Gard® 3300 (Black): is a blend of aramid fibers with a neoprene binder. It is effective against oils, fuels and refrigerants. It is used in general industry including: refrigeration, petroleum, oil & gas production; power generation (saturated steam) and water distribution and treatment. It is rated for temperatures up to 700°F.

Blue-Gard® 3700 (Light Grey): is a blend of aramid fibers, inorganic fillers and an EPDM (Ethylene Propylene Diene Monomer) rubber binder. It is used against acids and caustics of moderate concentrations. It adds exceptional resistance to both weather aging and ozone. It is rated for temperatures up to 700°F.

Thermoseal® (Klingersil®) Gaskets

Commercial Gasket & Packing produces die cut gaskets and water jet cut gaskets in a variety of Thermoseal® (Klinger®) compressed non-asbestos materials, including (but not limited to); C-4201, C-4300, C-4401, C-4324, C-4430 and C-4433.

Klingersil® C-4201 (white) is a compressed non-asbestos sheet made with synthetic aramid fibers bonded with a nitrile binder. It has excellent resistance to hot water, steam, oil and solvents with good anti-stick properties. This is an excellent OEM material. It is rated for up to 700°F.

Klingersil® C-4300 (white/green) is a compressed non-asbestos sheet made with synthetic aramid fibers bonded with a nitrile binder. It has good ability to seal and is chemical resistant. This is a good general-purpose sheet. It is rated for up to 700°F.

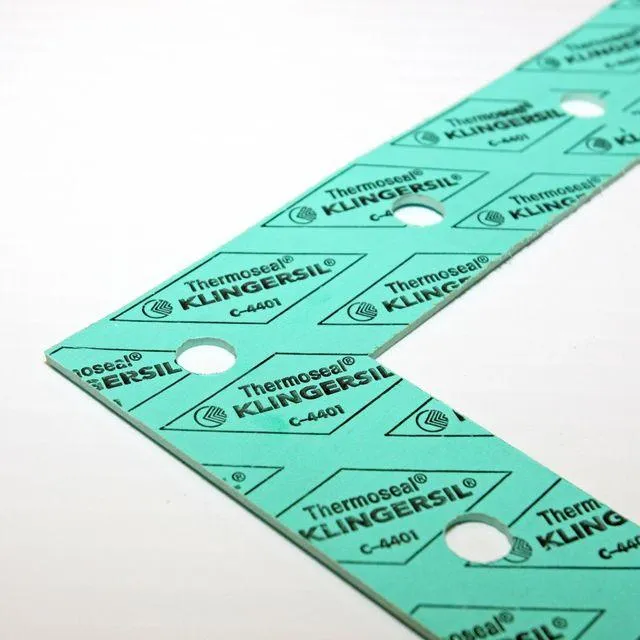

Klingersil® C-4401 (green) is a high quality compressed non-asbestos aramid fiber with a nitrile rubber binder. It has high heat resistance, chemical stability, and high torque retention and anti-stick properties. It is rated for up to 700°F.

Klingersil® C-4430 (white/green) is a premium grade compressed non-asbestos material composed of fiberglass, inorganic and aramid fibers that are bonded with nitrile rubber. Its properties include excellent chemical resistance, high temperature resistance in steam and water, and good creep resistance. It is manufactured to high specifications and often used in the aerospace industry. It is rated for up to 700°F.

Gasket Resources Durlon® Gaskets

Commercial Gasket & Packing produces die cut gaskets and water jet cut gaskets in a variety of Durlon® compressed non-asbestos materials, including: Durlon® 8400, Durlon® 8500, Durlon® 8600 and Durlon® 8700.

Durlon® 8400 (gold): is a Phenolic NBR sheet. It has the widest range of chemical resistance of any compressed non-asbestos sheet material. It is used in chemical applications such as; process piping and pulp & paper industries. It is ideal for fluid services including saturated steam, oils, dilute acids & alkalis, solvents, fuels and refrigerants. It is rated from -100°F to 800°F (intermittent) and continuous at 554°F.

Durlon® 8500 (green): contains a unique blend of aramid, inorganic fibers bonded with nitrile rubber. It provides excellent results for steam, hydrocarbons, natural gas, and new generation refrigerants. It is used in general industry including chemical, pulp and paper, refinery, pharmaceutical, gas pipeline, and food and beverage industries. It is ideal for fluid services including saturated steam, oils, dilute acids and alkalis, solvents, fuels and refrigerants. It is rated from -100°F to 800°F (intermittent) and continuous at 548°F.

Durlon® 8600 (White): is an aramid, inorganic fiber sheet bonded with SBR rubber. It is highly used in power, petro-chemical as well as the good and beverage industries. It has good compressibility, recovery, and excellent ability to seal in steam, condensate, and dilute acids. It is developed for services such as water, steam, air inert gases, alcohols, dilute acids and alkalis ammonia and many other liquids and gases. It is rated from -100°F to 800°F (intermittent) and continuous at 548°F.

Durlon® 8700 (blue): is a unique blend of high strength aramid and inorganic fibers with a neoprene binder. It has excellent resistance to ozone and provides excellent ability to seal in services such as ammonia containing refrigerant systems and oils. This product has excellent resistance to steam, ozone, oils, dilute acids, non-aromatic solvents and many refrigerants. It is rated from -100°F to 800°F (intermittent) and continuous at 548°F.

Frenzelit Novapress® Gaskets

Commercial Gasket & Packing produces die cut gaskets and water jet cut gaskets in a variety of Frenzelit Novapress® compressed non-asbestos materials, including (but not limited to); Novapress Basic, Novapress Universal, Novapress Flexible 815, Novapress Multi II and Multi EG.

Novapress® Basic: inherently good media resistance, stress relaxation and high pressure resistance.

Novapress® Universal: inherently superior oil resistance, minimum swelling in oils and fuels and the lowest gas leakage at minimum surface pressure.

Novapress® Flexible 815: inherently good media resistance, stress relaxation and high pressure resistance.

Novapress® Multi II and Multi EG (blue): has a graphite structure giving the material unique flexibility, excellent safety reserves under changing loads, gas tightness as specified in the standard and excellent stress relaxation. It is for up to 1022°F.

Standard (Unbranded) Compressed Non-Asbestos Gaskets

Commercial Gasket & Packing produces die cut gaskets and water jet cut gaskets using our standard (unbranded) line, high temperature compressed non-asbestos gasket material made from synthetic fibers and an elastomeric binder.

General Service Compressed Non-Asbestos SBR based sheet (green): is a high quality non-asbestos gasket material manufactured with synthetic fibers and SBR binders. It is recommended for use in sealing water, low pressure steam, air and gases. It is rated for temperatures up to 750°F.

General Service Compressed Non-Asbestos NBR based sheet (tan): is a high quality general service non-asbestos gasket material manufactured with synthetic fibers (aramid) and NBR binders. It is recommended for use in sealing oils, solvents, fuels and non-aggressive solutions. It is rated for temperatures up to 750°F.

Premium Compressed Non-Asbestos NBR based sheet (blue): is a premium grade non-asbestos gasket material manufactured with synthetic fibers and NBR binders. It is recommended for more severe applications in sealing oils, solvents, fuels, mild acids and alkalis, and general services conditions. It is rated for temperatures up to 750°F.

Ultra High Temp Compressed Non-Asbestos Sheet (gray): is a high temperature compressed carbon fiber non-asbestos gasket material. It is ideal for steam applications, water, fuels, lubricant alkalis and weak acids under high temperature and pressure. It is rated for temperatures up to 900°F.

Please visit our gasket materials page for more information on our extensive selection of materials.

For more information on custom compressed non-asbestos gaskets or to speak with one of our knowledgeable professionals, please feel free to Contact Us or complete our online Request For Quote form.
