FLEXIBLE GRAPHITE

Flexible Graphite Gaskets & Seals

Commercial Gasket & Packing is a manufacturer of high quality flexible graphite gaskets and seals. We fabricate custom die cut, water jet cut, and laser cut gaskets from a wide selection of flexible graphite materials. The three most common styles of flexible graphite materials we use include: pure graphite sheet; graphite sheet reinforced with a foil tang core; and laminated graphite sheet reinforced with a stainless steel insert. Flexible graphite gaskets are manufactured from sheet and roll material. It has a density of 70 lb/ft3 (1.1 g/cc). We typically stock flexible graphite sheets 1/32″, 1/16″ & 1/8″ thick. Flexible graphite gaskets are available with or without pressure sensitive adhesive (PSA) backing.

Flexible Graphite, Standard Grades

  • FLEXIBLE GRAPHITE, STYLE CGA
    A pure flexible, homogenous graphite laminated sheet with chemical and physical properties similar to non-laminated flexible graphite.
  • FLEXIBLE GRAPHITE, STYLE CGB
    It is flexible graphite inserted with a 0.002″ 316 Stainless Steel sheet. It has excellent chemical resistance and a temperature limit of 1600°F.
  • FLEXIBLE GRAPHITE, STYLE CGC
    Flexible graphite inserted with 0.004″ high purity Aluminum sheet for additional structure. The aluminum insert has a temperature limit of 900°F.

Flexible Graphite, Branded Material

Commercial Gasket fabricates flexible graphite gaskets and seals using a broad range of well known flexible graphite branded materials such as Grafoil®, Thermoseal® (Klinger®), Flexitallic®, Frenzelit®, Durlon®, and Teadit® in various styles and thicknesses.

Grafoil® Flexible Graphite Gaskets

Commercial Gasket produces high quality gaskets using Grafoil® Flexible Graphite. Grafoil® flexible graphite is made from 100% graphite and contains no resins or inorganic fillers. It has excellent resistance to corrosion against a wide variety of acids, alkalis and salt solutions, organic compounds, and heat transfer fluids, even at high temperatures. It has superior seal-ability under low flange loads, an unlimited shelf life and no sharp edges. Grafoil® flexible graphite material is engineered for critical sealing applications such as internal combustion engines and fluid sealing applications and related systems.
  • GrafTech Grade GHL GRAFOIL®
    Commercial Gasket produces high quality gaskets using GrafTech Grade GHL GRAFOIL® gasket material. GrafTech Grade GHL GRAFOIL® gasket material is a laminated material made with GRAFOIL® Grade-GTB flexible graphite. It is often used to replace old style or thick gaskets or to fill gaps caused by worn or out of flat flanges.
  • GrafTech Grade GHR GRAFOIL®
    Commercial Gasket produces high quality gaskets using GrafTech Grade GHR GRAFOIL® gasket material. It is an uncured laminate made with GRAFOIL® Grade GTB flexible graphite adhesively bonded to both faces of a .002″ thick flat 316 or 316L stainless steel insert.
  • GrafTech Grade GHO GRAFOIL®
    Commercial Gasket produces high quality gaskets using GrafTech Grade GHO GRAFOIL® gasket material. It is a laminate made with GRAFOIL® Grade GTB flexible graphite mechanically bonded to both faces of a .004″ thick tanged C-276 insert.

Thermoseal®/ Klinger® Flexible Graphite Gaskets

 Thermoseal® Klinger® Flexible Graphite Style HL
Commercial Gasket produces high quality gaskets using Thermoseal®/Klinger® Style HL flexible graphite. It is standard industrial grade graphite sheeting with superior chemical resistance. Graphite is highly compressible and compactable allowing for low gas permeability with low electrical resistance.
High Temperature Max 900°F
Low Temperature 0°F
PSI Range 2100
Compressibility 40 – 50%

Thermoseal® Klinger® Flexible Graphite Style SLS

Commercial Gasket produces high quality gaskets using Thermoseal® / Klinger® Style SLS flexible graphite. It is graphite adhesively bonded to a .002” 316 stainless steel foil. Graphite is highly compressible and compactable allowing for low gas permeability with low electrical resistance and has excellent anti-stick properties.
High Temperature Max 900°F
Low Temperature 0°F
PSI Range 2100
Compressibility 40 – 50%

Thermoseal® Klinger® Flexible Graphite Style PSM

Commercial Gasket produces high quality gaskets using Thermoseal® / Klinger® Style PSM flexible graphite. It is graphite mechanically clinched to a .004” 316 stainless steel tang core. Graphite is highly compressible and compactable allowing for low gas permeability with low electrical resistance and has excellent anti-stick properties.
High Temperature Max 900°F
Low Temperature 0°F
PSI Range 2100
Compressibility 40 – 50%

Flexitallic® Flexible Graphite Gaskets

  • Flexitallic® Flexicarb ST, Flexible Graphite
    Commercial Gasket produces high quality gaskets using Flexitallic® Flexicarb ST flexible graphite. It is a tanged steel reinforced graphite laminate with sheet material of graphite foil layers mechanically bonded to a 0.1 mm (0.004″) thick 316 stainless steel tanged core. This enhances the mechanical strength of the graphite foil. Flexicarb ST is suitable for sealing steam, water, gasses, hydrocarbons, alkalis and chemicals.
  • Flexitallic® Flexicarb SR, Flexible Graphite
    Commercial Gasket produces high quality gaskets using Flexitallic® Flexicarb SR flexible graphite. Flexicarb steel reinforced is a high performance laminate comprising of graphite foil chemically bonded to each face of a 0.05mm (0.002″) 316 stainless steel substrate. It possesses good mechanical properties and is suitable for sealing steam, water, gases, oils, hydrocarbons, alkalis.
  • Flexitallic® Flexicarb NR, Flexible Graphite
    Commercial Gasket produces high quality gaskets using Flexitallic® Flexicarb SR flexible graphite. It is a graphite laminate consisting of graphite foil with a nickel core 13 microns (0.0005″) thick. The bonding agent is a high temperature, chemical resistant nitrile phenolic adhesive.

Frenzelit Novatec® Graphite Based Gaskets

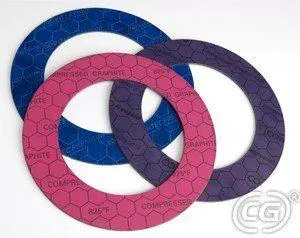

Commercial Gasket produces high quality gaskets using a variety of Frenzelit Novatec® compressed non-asbestos graphite filled materials, including: Novatec® 825, Novatec® 925, and Novatec® Premium II.
  • Novatec® 825 (cranberry): is a very soft non-asbestos fiber engineered with Kevlar. It has high stress relaxation properties. It is highly compressible and allows for outstanding conformability, adaptability and flexibility. It has high resistance to temperature and media and is rated for temperatures up to 850ºF.
  • Novatec® 925 (grape): is a medium density non-asbestos fiber engineered with Kevlar. It is 75% pure graphite which provides desired balance of elevated temperature resistance and chemical compatibility. It has a low compression and high recovery percentage allowing for accurate tolerance control. It is an excellent chemical sheet that works best in heat exchangers, vessels, valves and pumps. It is rated for temperatures up to 925ºF.
  • Novatec® Premium II (blue): is engineered graphite bonded with Kevlar. It offers high chemical resistance, long stability and is resistant to stress relaxation. Its high density and high tensile strength enhances excellent torque retention and superior ability to seal. Its stress relaxation exceeds the values of all conventional materials. It is rated for temperatures up to 1000ºF.

Durlon® Flexible Graphite Gaskets

Commercial Gasket produces high quality gaskets using Durlon® Flexible Graphite. It is unaffected by heat over a wide range of temperatures and exhibits low electrical resistivity and high thermal conductivity. This material is suitable for cryogenic temperatures. This product is suitable for applications in the automotive, refining and petrochemical plant processes.

Durlon® Flexible Graphite is available in several styles. These include homogeneous sheet and laminated styles with various types of core materials.

  • Durlon® Style FGS95, Flexible Graphite
    Commercial Gasket produces high quality gaskets using Durlon® Flexible Graphite Style FGS95. It contains no binders or resins and is used in industrial applications such as oil refineries, power plants and chemical process plants.
  • Durlon® Style FGL316, Flexible Graphite
    Commercial Gasket
    produces high quality gaskets using Durlon® Flexible Graphite Style FGL316. It is an industrial grade sheet laminated with an adhesive bond on both sides of a .002″ thick 316 stainless steel foil insert. It is used where high performance is critical.
  • Durlon® Style FGT316, Flexible Graphite
    Commercial Gasket
    produces high quality gaskets using Durlon® Flexible Graphite StyleFGT316. It is mechanically bonded on both sides of a .004″ thick 316 stainless steel metal tang core. It is used when stress and pressure resistance is important.
Temperature Range: 1200°F (650°C) Steam
Oxidizing: -450 to 750°F (-260 to 400°C)
Non-Oxidizing: -450 to 5,400°F (-260 to 3,000°C)
Pressure, max: 3,000 psi (20.7 MPa)
Fluid Resistance – pH Range: 0 to 14 at room temperature

Teadit® Flexible Graphite Gaskets

Commercial Gasket produces high quality gaskets using Teadit® Flexible Graphite.

Teadit® Style 2660
Commercial Gasket produces high quality gaskets using Teadit® Style 2660. It is a flexible graphite sheet and has pressure temperature seal-ability capabilities that are far superior to all non-asbestos reinforced sheet products. It is resistant to chemical attack by virtually all organic and inorganic fluids. Gaskets cut from Teadit® Style 2660 have low to moderate bolt loads and due to very low creep relaxation, re-torquing is rarely required. Flexible graphite conforms to irregular flange sealing surfaces and readily flows into flange irregularities enabling it to seal both smooth and coarse surface finishes.

Teadit® Style 2661 (Stainless Steel Flexible Graphite Sheet Foil Inserted)
Commercial Gasket produces high quality gaskets using Teadit® Style 2661. It is a flexible graphite sheet reinforced with a 316ss foil, .002” thick. It is resistant to chemical attack by virtually all organic and inorganic fluids. Gaskets cut from Teadit® Style 2661 have low to moderate bolt loads and due to very low creep relaxation, re-torquing is rarely required. Flexible graphite conforms to irregular flange sealing surfaces and readily flows into flange irregularities enabling it to seal both smooth and coarse surface finishes.

Teadit® Style 2663 (Flexible Graphite Sheet 316ss Tang Inserted)
Commercial Gasket produces high quality gaskets using Teadit® Style 2663. It is a flexible graphite sheet reinforced with a 316 stainless steel tanged core, .005” thick. It is resistant to chemical attack by virtually all organic and inorganic fluids. Gaskets cut from Teadit® Style 2663 have low to moderate bolt loads and due to very low creep relaxation, re-torquing is rarely required. Flexible graphite conforms to irregular flange sealing surfaces and readily flows into flange irregularities enabling it to seal both smooth and coarse surface finishes.

Teadit® Style 2664 (Flexible Graphite Mylar Film Inserted)
Commercial Gasket produces high quality gaskets using Teadit® Style 2664. It is a flexible graphite sheet reinforced with Mylar® film, .0005” thick. It is resistant to chemical attack by virtually all organic and inorganic fluids. Gaskets cut from Teadit® Style 2664 have low to moderate bolt loads and due to very low creep relaxation, re-torquing is rarely required. Flexible graphite conforms to irregular flange sealing surfaces and readily flows into flange irregularities enabling it to seal both smooth and coarse surface finishes.

Please visit our gasket materials page for more information on our extensive selection of materials.
